NHD-500-IW-TX v2

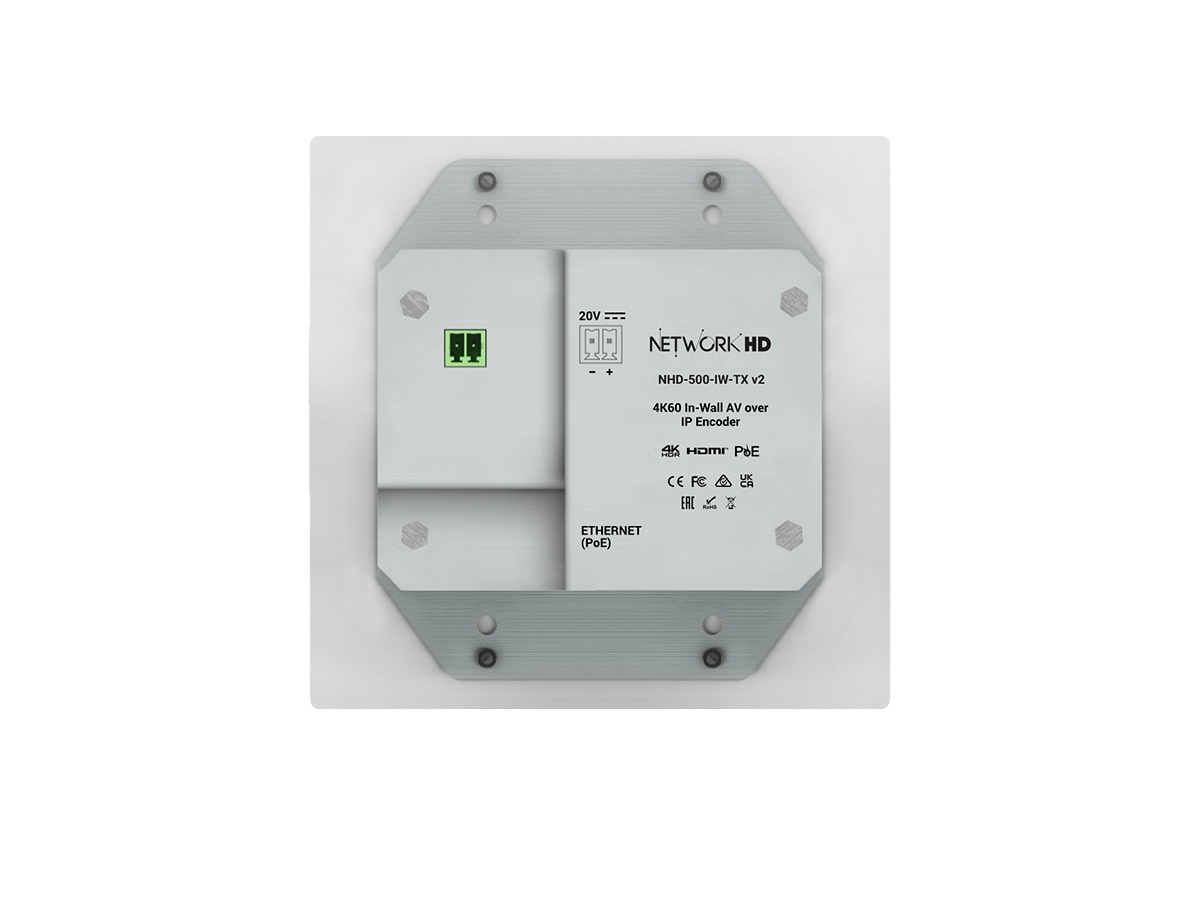

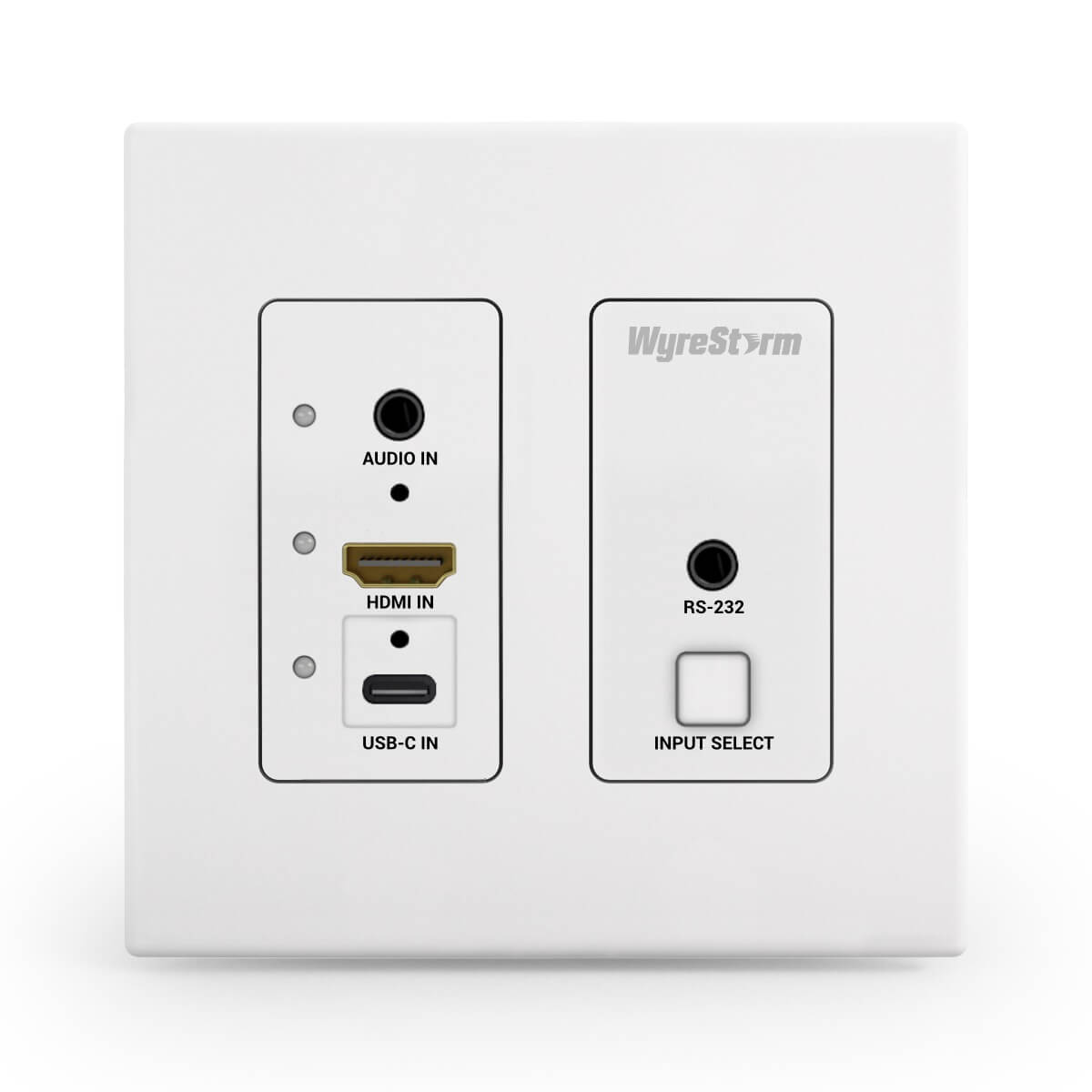

Ref: WYRES-NHD500IWTXV2The NHD-500-IW-TX v2 is a 2-gang wall-mount encoder from the 500 series, offering versatility for your AV-over-IP applications. It features HDMI and USB-C switchable inputs designed to connect todays modern laptops and tablets.
Price on request
I'm interested
Sujeito a confirmação de stock
Compare
Share
Features
- Inputs/Outputs: 1x HDMI In, 1x USB-C In, 1x 3.5mm TRS Analog In
Output Video Encoding: JPEG 2000
Video Resolution (Max): 4096x2160p @ 60Hz 8bit 4:4:4 or
RGB, 3840x2160p @ 60Hz 12bit 4:2:2 Dolby Vision
Supported Standards: RGB | DCI | USB 1.1, 2.0 | BT.2020
Maximum Pixel Clock: 600MHz
HDMI: HDMI 2.0b | HDCP 2.2 | EDID
RS-232: 1x 3.5mm | 2-way | API Programmable Network: 1x 1GbE RJ45
USB: 1x USB-C Host (Up to 200Mbps upstream)
Security Protocols: AES 256 | SSH | HTTPS
Power Supply: 20V DC 6A | 802.3af PoE Compliant
Max Power Consumption: Max 15.4 | Average: 8w
For more information check the TechSheet.
